Hold Baggage Screening

MV3D

The EU/ECAC EDS-Standard 3 certified MV3D delivers an unbeatable combination of innovative technology, superior threat detection, reliable performance and cost efficiency.

Novel Design Solution

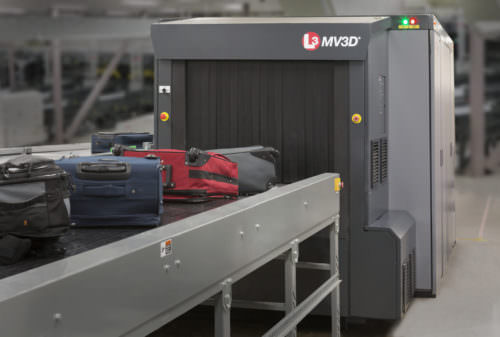

MV3D is designed to meet the highest level of detection performance without the use of a rotating gantry. The system utilizes a series of fixed X-ray sources and multiple detector arrays to create high resolution 2D and 3D images. This revolutionary design provides the end user with the operational benefits of a traditional automated checked baggage screening system and the detection performance previously available only from rotational gantry CTs.

Optimized BHS Integration:

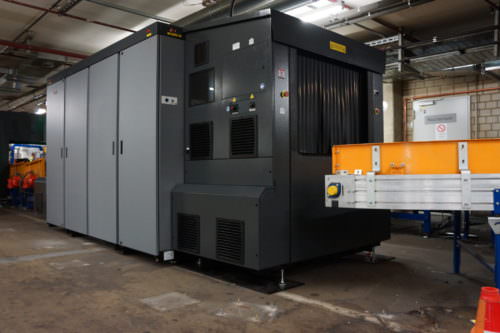

MV3D is designed from the outset to insure seamless integration with an airport’s baggage handling system. The system’s 0.5 meters-per-second belt speed allows it to scan up to 1,800 bags per hour. Its 102 cm wide by 81 cm high tunnel integrates easily with standard BHS systems. The MV3D’s dieback tolerant technology allows bags to be stopped in the scan plane for short periods and still allow the explosive detection analysis to proceed without impact. This increases the effective throughput and reduces costly rescreening of these bags.

Low Total Cost of Ownership
The system is architected to offer customers a lower total cost of ownership. The stationary gantry design eliminates moving parts to deliver superior MTBF (Mean Time Between Failures) and system availability, ensuring lower maintenance costs for airport operators. Since the MV3D does not require air conditioning, it consumes less energy to operate at temperatures ranging from 0 to 40°C. Flexible networking options link MV3D with eXaminer family and MVT-HR hold baggage systems and their respective workstations over a secure network for optimized staff utilization.

Exceptional Detection and Rapid Alarm Resolution
MV3D’s unique design provides our advanced algorithms with both high resolution 2D and 3D image data. L3HARRIS is uniquely positioned to utilize our explosive detection experience in both automated and traditional rotation gantry CT systems, providing the user with improved detection and false alarm performance.

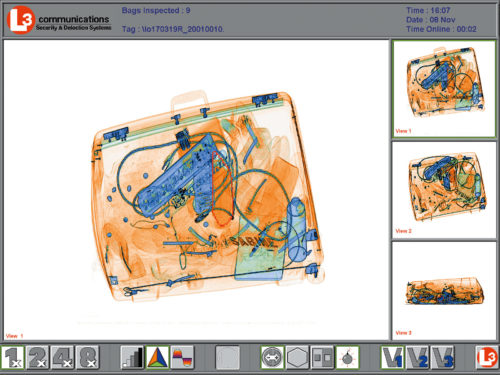

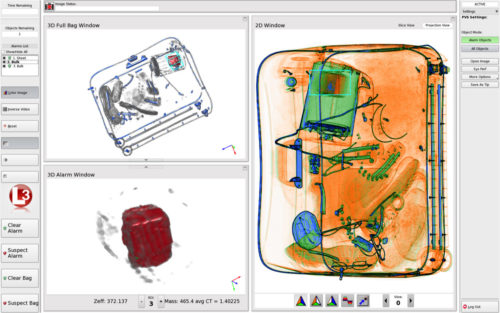

Images of suspect bags are displayed on our latest viewing station, where operators have both high-resolution 2D and 3D views to evaluate. L3HARRIS STP-compliant 2D imaging facilitates rapid on-screen alarm resolution. Intuitive on-screen 3D image and threat object rotation tools allow operators to see through clutter to make faster, higher-confidence decisions.



  • Scans up to 1,800 bags per hour
  • Stationary gantry improved reliability
  • Best-in-class imaging and detection
  • Flexible alarm resolution options – 2D & 3D imaging
  • Large rectangular tunnel for 102 cm x 81 cm
  • 0.5 meters-per-second belt speed
